Ultramicrotome | 마이크로톰
| Laboratory/Field | |||
|---|---|---|---|
| Model | CR-X | ||
| Maker | RMC | ||
| Technician | Gyeong Ae Lee | ||
| Contact | 052-217-4163 / [email protected] | ||
| Status for Reservation | 가능 | ||
| Reservation Unit | 0.5hr | Maximum Time (per day) | 6hr |
| Open(~ago) | 5일전 | Cancel (~ago) | 2시간전 |
| Equipment location | 102동 B115호 (Bldg.102, Room B115) | ||
-
Description

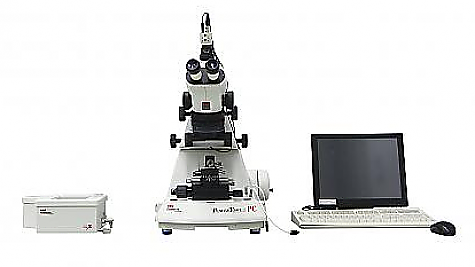

Ultramicrotomes are precision mechanical instruments designed to cut uniformly thin sections of materials for detailed microscopic examination. The quality of a section is dependent on the sample material, cleanliness, sample prep, and cutting parameters. Section thickness is controlled by precise advancement of the sample towards a knife held rigidly in place.
• SEM(Room temperature) : 60,000 won/ea
• TEM(Room temperature) : 80,000 won/ea
• TEM(Cryogenic) : 150,000 won/ea -
Specifications
• Auto thin sectioning from 5 nm
• Auto thick sectioning to 15μm
• Cutting speed range from 0.1 ~ 49.9 mm/sec
• Specimen auto feed 200μm
• Variable return speed over entire cutting speed range
-
Applications
• Optical, SEM, TEM sample prep
