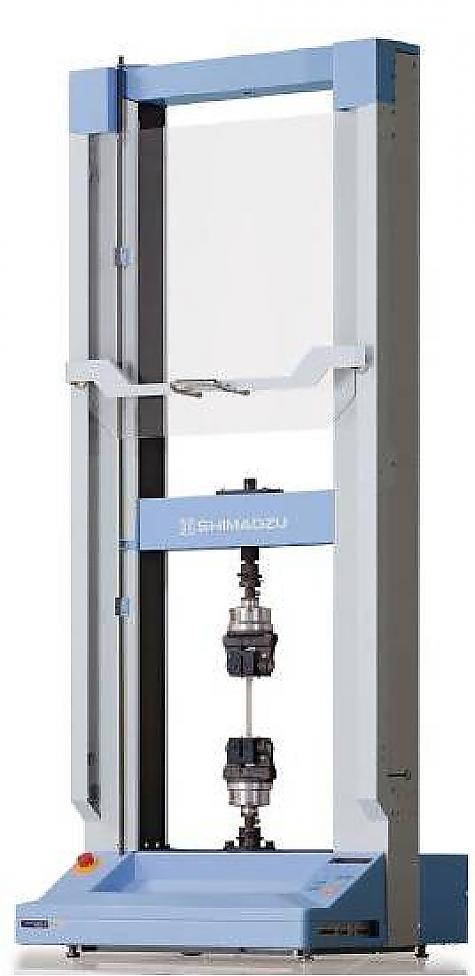

Universal Testing Machine | 만능재료 시험기
| Laboratory/Field | |||
|---|---|---|---|
| Model | AGX-100NX | ||
| Maker | SHIMADZU | ||
| Technician | Nam-gyu Kim | ||
| Contact | 052-217-4170 / namgoo1018@unist.ac.kr | ||
| Status for Reservation | 가능 | ||
| Reservation Unit | 1시간 | Maximum Time (per day) | 8시간 |
| Open(~ago) | 1주일 | Cancel (~ago) | 1일 |
| Equipment location | 107동 110호 (Bldg.107, Room.110) | ||
-
Description
This is a test equipment to construct systematic database by examining the tension and flexural strength of electronic components, graphene, and advanced materials.
-
Specifications
• Max load capacity : 100 N
• Crosshead to table distance : 1200 mm
• Effective specimen width : 425 mm
• Dimensions : W 653 x D 520 x H 1603
• Weight : 85 kg
• Power supply capacity : 1.2 KVA
• Drive motor : 400 W AC Servo motor
• Power consumption : 300 W
• Position control resolution : 0.033 um
• Testing speed range : 0.001 mm/min to 1000
-
Applications
• The tensile test of lamination, rubber, graphene device
• Indirect measurement of the tensile strength
• Compression, bending cycle test
