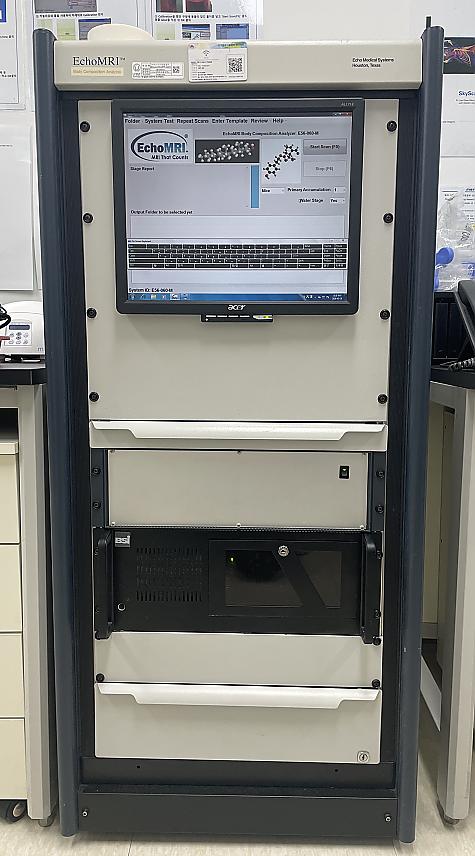

Mouse Echo-MRI(Body composition analysis) | 마우스 자기공명 장치(체성분 분석기)
| Laboratory/Field | |||
|---|---|---|---|
| Model | EchoMRI™-100H | ||
| Maker | EchoMRI™ | ||
| Technician | 황수현 | ||
| Contact | 052-217-5223 / hshwang@unist.ac.kr | ||
| Status for Reservation | 가능 | ||
| Reservation Unit | 0.5hr | Maximum Time (per day) | 24hr |
| Open(~ago) | 2주 | Cancel (~ago) | 1hr |
| Equipment location | 줄기세포연구관(105동) B42 영상분석실3 | ||
-
Description
- 마우스 whole body fat mass lean tissue mass free water and total body water 등을 살아 있는 상태에서 측정
- 특정 단백질의 유전적 체내 구성요소를 빠른 시간 안에 분석할 수 있음
- 살아있는 마우스의 체형 성분 분석을 위한 최소형의 모델
- 소음과 진동이 적고 측정 시간이 빠름- Measure mouse whole-body fat mass, lean tissue mass, free water, and total body water in a live state.
- Enables rapid analysis of specific proteins’ genetic components in vivo.
- A compact model for analyzing body composition in live mice.
- Low noise and vibration with fast measurement time. -
Specifications
Specifications
Dimensions: 24"W x 28"D x 52"H / 61cm x 71cm x 132cm
Weight: Approximately 495lbs / 225Kg
Instrument Power: 1 outlet at 115/230 VAC 50-60 Hz 500 W 8A/4.5A
Shielding: The 5-gauss field is fully contained within the enclosure
Holders: 3 animal holders of custom-defined sizes typically 20 40 60 80 and 100g
- Mobility: Single-body system on 4 casters for easy relocation
- Measuring Time: 0.5 ？ 3.2 minutes depending on the precision option
- Calibration: Not required after installation
- Records: Automatic save in file system and database
- Output: Fat mass lean tissue mass free water and total body water
-
