Low Speed Saw

보유장비 관련 정보
Laboratory/Field
Model TECHCUT4
Maker ALLIED
Technician Gyeong Ae Lee
Contact 052-217-4163 / kalee@unist.ac.kr
Status for Reservation 가능
Reservation Unit 0.5hr Maximum Time (per day) 24hr
Open(~ago) 5일전 Cancel (~ago) 2시간전
  • Description

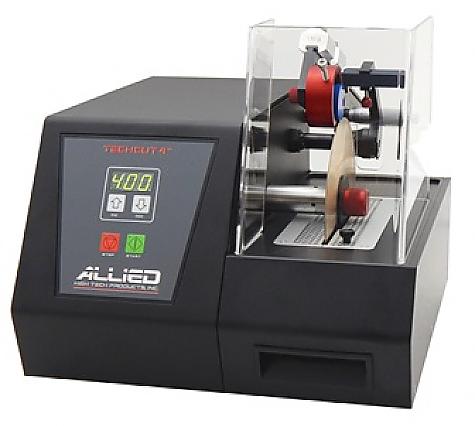

    The TechCut 4™ is a precision low speed saw excellent for cutting smaller, delicate samples that cannot tolerate increased heat caused by high speed sectioning. The pivoting cutting arm has adjustable weights to apply or counterbalance downward force to the sample during sectioning. Cutting fluid is drawn from the reservoir by the blade to cool the sample. With a 3" to 6" blade range, samples up to 2" thick can be sectioned.

  • Specifications

    Gravity-fed cutting system

    3-6" (75-150 mm) diameter blade range, 0.5" (12.7 mm) arbor hole

    Variable speed with LED display: 10-500 RPM (10 RPM increments)

    Cutting capacity: 2" (51 mm) thickness

    Micrometer sample indexing, 2 µm resolution, 1.5" (38 mm) range

    Spring-retractable dressing stick attachment for dressing while sectioning

    Optical shut-off sensor with adjustable stop to control depth of cut

    Precision-machined aluminum and stainless steel construction that maximizes corrosion resistance and durability

    0.6 HP (45 W) motor with durable reduction gearbox for constant high-torque output

    Sliding weights provide variable sample loading: 0-300 grams

    Dimensions: 13" W x 15" D x 13" H (330 x 381 x 330 mm) Weight: 36 lb. (16 kg)
