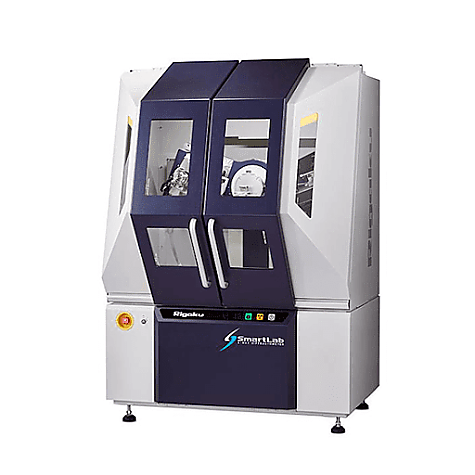

High Resolution X-ray Diffractometer(HRXRD 2) | 고분해능 X-선 회절분석기
| Laboratory/Field | |||
|---|---|---|---|
| Model | SmartLab | ||
| Maker | RIGAKU | ||
| Technician | Gyeong Ae Lee | ||
| Contact | 052-217-4163 / kalee@unist.ac.kr | ||
| Status for Reservation | 가능 | ||
| Reservation Unit | 30분 | Maximum Time (per day) | |
| Open(~ago) | Cancel (~ago) | ||
| Equipment location | 울산광역시 울주군 언양읍 유니스트길 50 울산과학기술원 102동 B101-2호 | ||
-
Description
○ 측정범위: 5~120 도
○ 샘플 준비
- 분말: 1g 이상(입자크기 < 40 micron, 밀가루 정도)
- 벌크: 1 cm x 1 cm
- 박막: 1.5 cm x 1.5 cm
○ Measurement range: 5~120 degrees
○ Specimen Preparation
- Powder: 1g or more(Particle size < 40 micron)
- Bulk: 1cm x 1cm
- Thin film: 1.5cm x 1.5cm○ Measurement range: 5~120 degrees
○ Specimen Preparation
- Powder: 1g or more(Particle size < 40 micron)
- Bulk: 1cm x 1cm
- Thin film: 1.5cm x 1.5cm
○ 측정범위: 5~120 도
○ 샘플 준비
- 분말: 1g 이상(입자크기 < 40 micron, 밀가루 정도)
- 벌크: 1 cm x 1 cm
- 박막: 1.5 cm x 1.5 cm -
Specifications
○ X-ray generator
- Max. output : 9kW or more
- Max. voltage : 45kV or more
- Max. current : 200mA or more
- Source : Rotating anode Cu target
○ Goniometer
- Type : Theta-Theta vertical type
- Radius : 300mm or more
○ Multi-axes large cradle stage
- Theta/2theta : -3 to 162 deg or more
- 2theta/chi-axis(In-Plane) : 3 to 120 deg or more
- Chi-axis : -5 to +95 deg or more
- Phi-axis : -360 to +360 deg (unlimited) or more
- Z-axis : 2mm or more
- Max. sample size : 8 inch or more
○ Slit & Optics
- Incident & Receiving slit : Automatic variable slit
- Parabolic mirror optic : Parallel beam
○ Detector
- Type : Hybrid multi-channel semi-conductive detector
- Active area : 380mm²or more
- Strip size : 75μm or less
- Scan mode : 1D & 0D or more
○ Software & Utilities
- Standard functions
- Application functions
- Chiller & AVR, PC
-
