Equipment

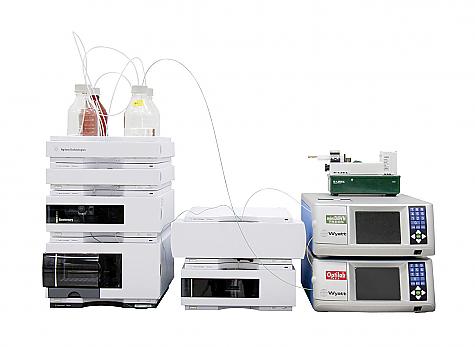

GPC/MALS | 겔침투크로마토그래프

보유장비 관련 정보
Laboratory/Field
Model Agilent 1200S/miniDAWN TREOS
Maker Agilent/Wyatt
Technician Hyun-Kyung Seo
Contact 052-217-4183 / [email protected]
Status for Reservation 가능
Reservation Unit 1hr Maximum Time (per day) 12hr
Open(~ago) 5일전 Cancel (~ago) 3시간전
Equipment location 102동 B111호 (Bldg.102, Room.B111)
  • Description

    Gel permeation chromatography (GPC) is a termused for when the separation technique size exclusion chromatography (SEC). GPC is often used to determined the relative molecular weight of polymer. Multiangle light scattering (MALS) is a technique for determining, independently, the absolute molar mass and the average size of particles in solution, by detecting how they scatter light.

  • Specifications

    • GPC - flow precision : < 0.07 % RSD

    - pressure : 0 ~ 400 bar

    - detector type : double-beam photometer

    - wavelength range : 190 ~ 600 nm

    • MALS - light source : 60 mW GaAs linearly polarized laser

    - laser wavelength : 658 nm

    - laser life time : >10,000 hours

    - detectors : 3 angles

    • Molecular weight range : 103 ~ 106 g/mole

    • Molecular size range : 10 ~ 50 nm

  • Applications

    • Analysis of synthetic polymer

    • Analysis of biopolymer
