Equipment

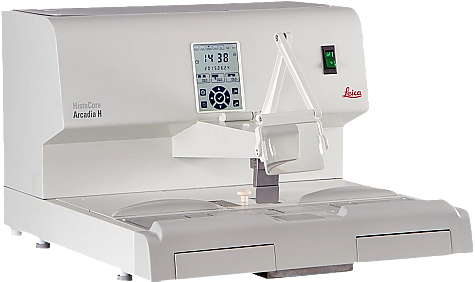

Paraffin embedding center

보유장비 관련 정보
Laboratory/Field
Model EG1150H+C
Maker Leica Microsystems
Technician Yoon Ji Choi
Contact 052-217-5211 / soar103@unist.ac.kr
Status for Reservation 가능
Reservation Unit 1hr Maximum Time (per day) 24hr
Open(~ago) 1주전 Cancel (~ago) 3hr
Equipment location 105동 106호(Bldg.105, Room 106)
  • Description

    [Hot plate]
    • Height-adjustable, rotary and fold-back clip for activating the paraffin flow with the embedding mold, manually or via foot switch
    • Spacious, heated work surface with paraffin drain system for interim storage of molds and cassettes
    • Adjustable temperatures for paraffin reservoir, working surfaces and integrated warming trays, between 55 °C to 70 °C in 5 K increments
    • Programmable on and off timer
    [Cold plate]
    • Constant temperature of the cold plate at – 5 °C
    • Approx. 70 cassette molds capacity

  • Specifications

    • Work Surface Dimensions : 8.26” x 6.89” (2x)

    • Work Surface Temperature : 55 °C - 70 °C

    • Paraffin Reservoir Capacity : 3 Liters

    • Cold Plate Dimensions : 13” x 14.56”

    • Cold Plate Temperature : - 5 °C

  • Applications

    • Histology

    • Paraffin embedding of tissue specimens

    • Paraffin block
