Equipment

3D 프린터(X500Pro) | 3D 프린터(X500Pro)

보유장비 관련 정보
Laboratory/Field

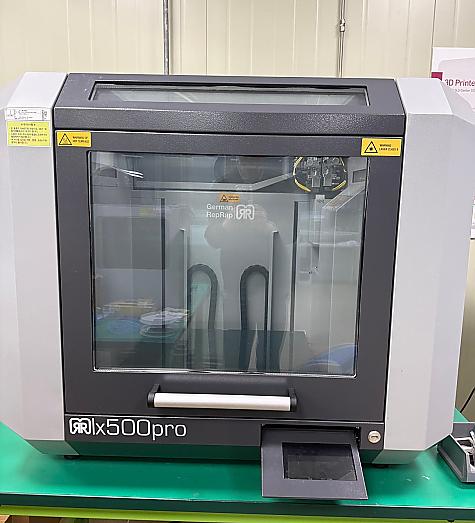

Model X500Pro
Maker German Laplap
Technician Jin-sik Kim
Contact 052-217-4170 / kjs087@unist.ac.kr
Status for Reservation 가능
Reservation Unit 1시간 Maximum Time (per day) 24시간
Open(~ago) 1주일 Cancel (~ago) 1일
Equipment location 107동 110호 (Bldg.107, Room.110)
  • Description

    빌드볼륨 500-500-500mm의 고성능 산업용 FDM 3D프린터입니다. 사용가능한 소재는 PLA, ABS소재를 사용할 수 있으며 액티브 챔버 히팅시스템을 통하여 최대 400℃고온 노즐을 사용하여 엔지니어링 플라스틱 출력시 발행할 수 있는 열변형과 수축을 완벽히 제어합니다. 시제품 제작부터 기능성 부품의 소량 양산까지 대응합니다.

    This is a high-performance industrial FDM 3D printer with a build volume of 500 x 500 x 500 mm. It supports PLA and ABS materials and utilizes an active chamber heating system with a high-temperature nozzle up to 400°C to perfectly control thermal deformation and shrinkage that can occur when printing engineering plastics. It handles everything from prototyping to small-batch mass production of functional parts.

  • Specifications

    Build Volume / Working Range (X × Y × Z): X500mm-Y500mm-Z500mm

    Positioning Accuracy: +-0.01mm

    Repeatability: +-0.005mm

    Cooling System: Integrated dual-fan forced air cooling and liquid cooling loop for critical components

  • Applications

    -Functional Prototyping

    -Jigs, Fixtures, and Tooling

    -Lightweight Structural Components

    -Topology Optimization & DFAM
