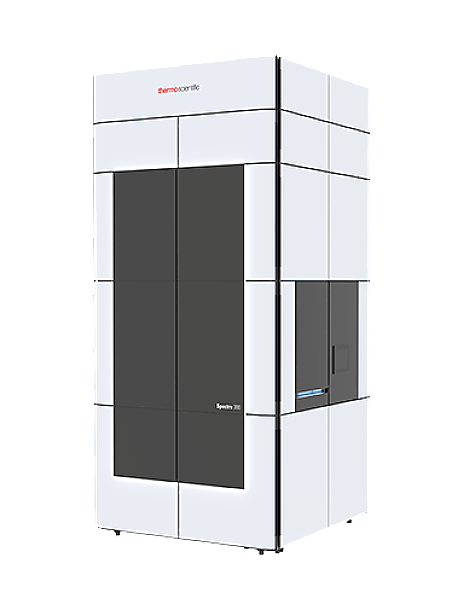

투과전자현미경3(TEM3)_Spectra 300 | 투과전자현미경3
| 연구실/분야 | |||
|---|---|---|---|
| 모델명 | Spectra 300 | ||
| 제조사 | Thermofisher | ||
| 담당자 | 박지현 | ||
| 연락처 | 052-217-4177 / jihyun9067@unist.ac.kr | ||
| 예약 가능여부 | 가능 | ||
| 예약단위 | 0.5hr | 1일최대예약시간 | 2hr |
| 예약Open(~일 전) | 5일전 | 예약취소불가(~일 전) | 2시간전 |
| 장비위치 | 102동 B114호 | ||
-
Description
TEM is used to analyze micro-structures of materials with high spatial resolution. The high voltage electron beam generated from electron gun is illuminated on thin film specimen. The beam penetrating the specimen passes through an array of magnetic lenses and forms a high resolution electron image of the electron diffraction pattern.
-
Specifications
• Acceleration voltage : 80, 200, 300 kV
• HAADF-STEM resolution@300 kV : 0.05 nm
• EDS : Super-X(4-SDD(120mm^2))
-
Applications
• Sub angstrom spatial resolution TEM
• Atomic resolution at low kV
• Imaging and spectroscopy of soft matters
• Dynamics of individual atoms
• High energy resolution EDS
• Energy-filtered imaging and diffraction
