HPLC | 고성능 액체크로마토그래피
| 연구실/분야 | |||
|---|---|---|---|

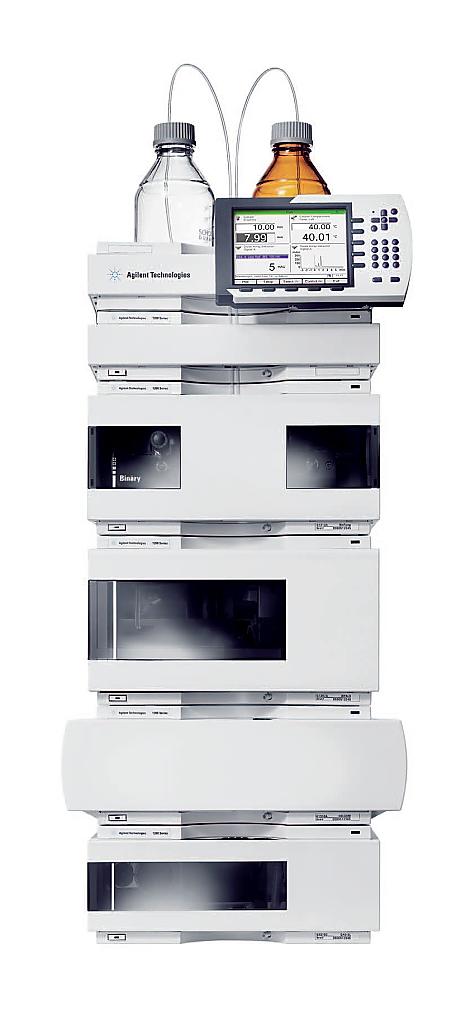

| 모델명 | 1200 Series | ||
| 제조사 | Agilent | ||
| 담당자 | 서현경 | ||
| 연락처 | 052-217-4183 / seohk26@unist.ac.kr | ||
| 예약 가능여부 | 불가능 | ||
| 예약단위 | 0.5hr | 1일최대예약시간 | 12hr |
| 예약Open(~일 전) | 5일전 | 예약취소불가(~일 전) | 2시간전 |
| 장비위치 | 102동 B111호 (Bldg.102, Room.B111) | ||
-
Description
High Performance Liquid Chromatography (HPLC) is an analytical technique for separating and quantifying components in a mixture. It uses a liquid mobile phase to flow a sample through a tube called a column, and each component exits the column at a different time depending on how much it interacts with the stationary phase in the column. This time is called the retention time, and it can be used to identify and quantify the components. It is widely used for ingredient analysis in a variety of fields, including chemical, pharmaceutical, food, environmental, and more.
-
Specifications
• Binary Pump
- Flow range: 0.1 - 5.0 ml/min
- Pressure: Operating range 0 400 bar (0 - 5880 psi) up to 5 ml/min
• Auto Sampler
- Injection range: 0.1 - 100 µl in 0.1 µl increments
• Column Oven
- Temperature range: 10 degrees below ambient to 80 °C
• Variable Wavelength Detector
- Detection type: Double-beam photometer
- Light source: Deuterium lamp
- Wavelength range: 190 - 600 nm
• Software
- Chemstaion
-
Applications
• Drug composition analysis and purity testing
• Drug degradation products analysis
• Vitamins analysis
• Food additives analysis
• Natural antioxidants analysis
• Aromatic hydrocarbons, pesticides detection
• Aromatic amino acids analysis
• Drug metabolomics analysis
