Equipment

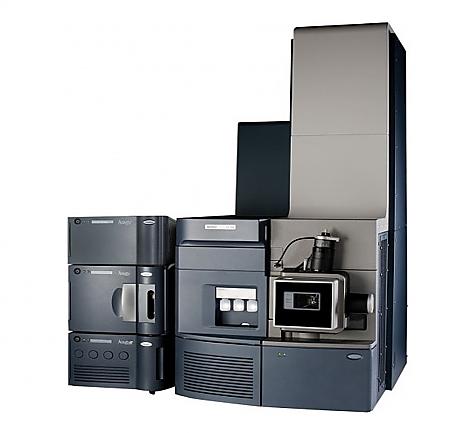

LC/MS/MS 2 | 액체크로마토그래피 질량분석기

보유장비 관련 정보
Laboratory/Field
Model Xevo G2 Tof
Maker Bruker
Technician Hyun-Kyung Seo
Contact 052-217-4183 / seohk26@unist.ac.kr
Status for Reservation 가능
Reservation Unit 1hr Maximum Time (per day) 12hr
Open(~ago) 5일전 Cancel (~ago) 1일전
Equipment location 102동 B111호 (Bldg.102, Room.B111)
  • Description

    LC/MS/MS is a simultaneously provide excellent selectivity spectral measurement range analysis speed quantitative accuracy and precise mass spectrometry at an exceptional level of sensitivity. This technology provides information suitable for various applications such as peptide mapping, protein intact mass analysis, metabolite identification, etc., enabling rapid and correct qualitative and quantitative analysis.

  • Specifications

    • Mass Resolution : > 22500 FWHM or more

    • MS sensitivity(ESI+)

    - 50 pg/ul of leucine enkephalin (m/z 556 Da) intensity of greater than 1632 counts/sec at > 22500 FWHM resolution or better

    - 50 pg/ul of leucine enkephalin (m/z 556 Da) intensity of greater than 3264 counts/sec at > 10000 FWHM resolution or better

    • MS sensitivity(ESI-)

    - 500 pg/ul of raffinose (m/z 503 Da) intensity of greater than 1728 counts/sec at > 20000 FWHM resolution or better

    - 500 pg/ul of raffinose (m/z 503 Da) intensity of greater than 3456 counts/sec at > 10000 FWHM resolution or better

    • Acquisition Rate : up to 30 Spectra/sec or more.

    • Mass Measurement accuracy : better than 1 ppm RMS

    • MS/MS sensitivity

    - [Glu1]-Fibrinopeptide B solution of 100 fmol/uL at > 20000 resolution be greater than 125 counts per second or better

    • Isotope ratios

    - At the ± 1.0 % or better

  • Applications

    • Analysis of organic composition

    • Identification of molecular weight

    • Analysis of DNA, RNA, proteins

    • Analysis of environmental samples (water, waste, soil)
