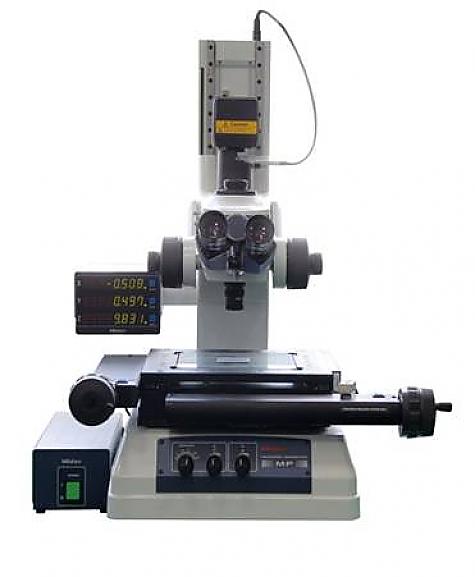

Powerful Microscope | 공구 현미경

보유장비 관련 정보
Laboratory/Field
Model MF-1010B
Maker Mitutoyo
Technician Jin-Sik Kim
Contact 052-217-4170 / kjs087@unist.ac.kr
Status for Reservation 가능
Reservation Unit 30분 Maximum Time (per day) 8시간
Open(~ago) 1주일 Cancel (~ago) 3시간
Equipment location 107동 106호 (Bldg.107, Room.106)
  • Description

    This microscope has a fine moving table which can move in every direction. The user can recognize how far it moves through a standard microscope or micrometers.

  • Specifications

    • Measuring range : X- 100 mm, Y- 100 mm

    • Z-axes height of the max. mass : 150 mm

    • Effective class size : 180 mm x 180 mm

    • Max. weight : 10 Kg

    • Digital counter resolution : - 0.001 / 0.0005 / 0.0001 mm

  • Applications

    • Measurement of surface roughness

    • Measurement of pitch screw

    • Measurement of tool

    • Measurement of gauge
