LC-ICP/MS | 유도결합플라즈마 질량분석기
| Laboratory/Field | |||
|---|---|---|---|
| Model | ELAN DRC-II | ||
| Maker | Perkin Elmer | ||
| Technician | Hee-sik Son | ||
| Contact | 052-217-4068 / redson7598@unist.ac.kr | ||
| Status for Reservation | 가능 | ||
| Reservation Unit | 0.5 시간 | Maximum Time (per day) | 8시간 |
| Open(~ago) | 없음 | Cancel (~ago) | 없음 |
| Equipment location | 102동 B103-5호 (Bldg.102, Room B103-5) | ||
-
Description

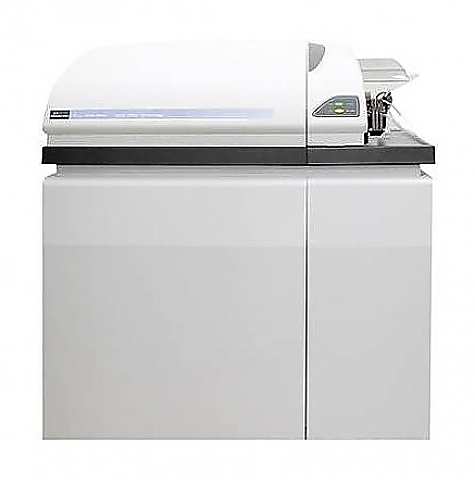

ICP-MS combines a high-temperature ICP (Inductively Coupled Plasma) source with a mass spectrometer. The ICP source converts the atoms of the elements in the sample ions. These ions are then separated and detected by the mass spectrometer.
-
Specifications
• Dual turbo-molecular pumps with ceramic bearings
• Vacuum levels : 1 x 10-6 Torr
• 27.12 MHz ~ 40 MHz RF Generator
• Dynamic Reaction Cell
• Thermal stabilization of the quadrupole power supply (QPS) at > 2.5 MHz mass spectrometer
-
Applications
• Quantitative analysis of various atoms
• Analysis of samples in the life sciences
• Isotope ratio measurement
